QS-Monitor AMI INSPECTOR Hydrogen

QS-Monitor AMI INSPECTOR Hydrogen

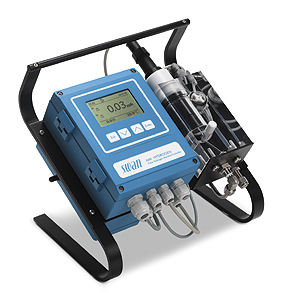

The portable AMI INSPECTOR is a complete monitoring system mounted on a small panel with supporting stand and a rechargeable battery for stand-alone operation, for measurement of dissolved hydrogen in water steam cycle.

  • Measurement range:
    0.1ppb to 800ppb H2 (at 25°C, 1013hPa) or
    0 to 50% saturation
  • Rechargeable battery for stand-alone operation for at least 24 hours.

Specifications

Complete portable system mounted on small aluminium panel with supporting stand and rechargeable battery.

  • Transmitter in aluminium housing (IP 66) with 2 relays as limit switch or controller or timer, 1 alarm relay as summary alarm contact, 1 input for potential-free contact. Including USB Interface with 1 signal output for measuring value or for continuous control.
  • Flow cell QV-Flow PMMA OTG made of acrylic glass with needle valve and digital sample flow meter.
  • Swansensor Hydrogen with platinum anode and integrated NT5K temperature sensor.
  • Rechargeable battery for stand-alone operation of at least 24 hours.



Measuring range: 0.1 to 800ppb H2 (at 25°C, 1013hPa) or
0 to 50% saturation
Resolution: 0.1ppb
Power supply: 85 – 265 VAC; 50/60Hz
Stand-alone operating time: > 24 hours
Sample flow rate: 6 to 20 l/h
Sample temperature: up to 45°C
Process connection Inlet: Swagelok ¼” tube adapter
Process connection Outlet: flexible tube 8 x 6 mm
Total weight: 4.5 kg

For further information see datasheet in downloads.



Contact us to place an order.
