QS-Monitor AMI INSPECTOR Resistivity

QS-Monitor AMI INSPECTOR Resistivity

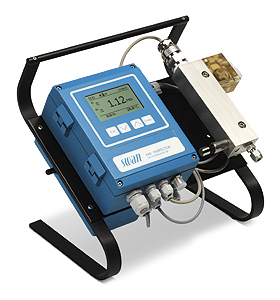

The portable AMI INSPECTOR is a complete monitoring system mounted on a small panel with supporting stand and a rechargeable battery for stand-alone operation, designed as an inspection equipment for quality assurance of online, resistivity process monitors.

  • Resistivity measurement range: 0.01 to 18.18 MΩ-cm
  • Rechargeable battery for stand-alone operation for at least 24 hours.

Specifications

Complete portable system mounted on small aluminium panel with supporting stand and rechargeable battery.

  • Transmitter in aluminium housing (IP 66) with 2 relays as limit switch or controller or timer, 1 alarm relay as summary alarm contact, 1 input for potential-free contact. Including USB Interface with 1 signal output for measuring value or for continuous control.
  • Flow cell QV-HFlow made of stainless steel with flow adjustment valve and digital, high-temperature sample flow meter.
  • Swansensor RC-U high precision two-wire electrode made of stainless steel with integrated NTC temperature probe.
  • Rechargeable battery for stand-alone operation of at least 24 hours.



Measuring range: 0.01 to 18.18 MΩ-cm
Accuracy: ± 0.5% of measured value
Power supply: 85 – 265 VAC; 50/60Hz
Stand-alone operating time: > 24 hours
Sample flow rate: 70 to 100 l/h
Sample temperature: up to 95°C
Process connection Inlet: Swagelok ¼” tube adapter
Process connection Outlet: flexible tube 8 x 6 mm
Total weight: 4.5 kg

For further information see data sheet in downloads.
