Continuous UV absorption monitoring for precise determination of the organic load in raw-, process-, and wastewater

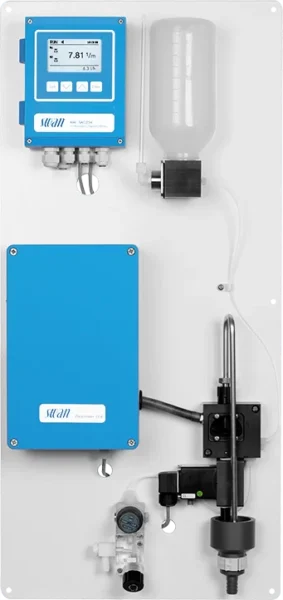

The AMI SAC254 is an innovative online monitor for continuous UV absorption measurement at 254 nm. Designed for measuring organic contamination, it delivers unmatched measurement accuracy and a broad measuring range using its patented dynamic measurement principle. UV absorption at 254 nm (SAC254) is a reliable surrogate parameter for assessing organic carbon, such as DOC and TOC, in raw-, potable-, process- and wastewater. Improve your water monitoring with real-time organic carbon trending and contamination detection.
Key Features
- Insensitive to fouling of optical components due to the patented dynamic measurement principle.
- Broad measuring range from 0 up to 300 m-1 due to flexible optical path length.
- Wide measuring path providing an exceptionally broad measuring range from 0 to 300 m-1.
- Continuous UV absorption measurement for real-time organic load monitoring.
- Cost-effective measurement of surrogate parameters such as TOC, DOC, BOD and COD.
- Grab sample function for manual measurement, verification and calibration.
SAC 254 Specifications
UV absorption measurement
| Measuring range | 0 to 300 m-1 / 0 to 100% UVT |
|---|---|
| Measured parameters | Absorbance, UVT, concentration |
| Wavelength | 254 nm |
| Measuring interval | 30 sec. to 3 min. |
| Precision | ± (1% + 0.01 m-1) |
Power supply
| Voltage | 100 – 240 VAC (±10%), 50/60 Hz / 10 – 36 VDC |
|---|
Sample conditions
| Flow rate | 2 to 12 L/h |
|---|---|
| Temperature | 5 to 30 °C (not higher than ambient temperature) |
| Inlet pressure | 0.5 to 10 bar (with flow controller option) |
| Outlet pressure | Pressure free |
Contact us to place an order.
Downloads
| Brochure | Product Flyer |
| Manual | Manual |
| Datasheet | Datasheet |
