Analyser for continuous measurement of (ortho-) phosphate in boiler water and applications with high concentra-tion

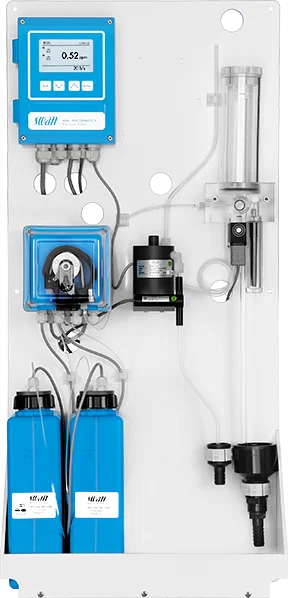

Analyser for continuous (ortho-) phosphate monitoring in boiler water and high concentration applications. Based on vanadate-molybdate yellow colorimetric method (APHA 4500-P C). Complete system including measurement and control electronics, photometer, flow indicator, reaction chamber, reagent dosing system and reagent container. Reliable online measurement with simple system integration.
Key Features
- Robust process photometer suitable for highly contaminated boiler water samples.
- Stable readings with automatic zero calibration before each measurement.
- Low reagent consumption with selectable measurement intervals.
- No interference from the presence of silica in the sample.
- High operating reliability and predictive maintenance through monitoring of sample flow and reagent fill level.
- Integrated diagnostics for the photometer, pump and solenoid valve.
Phosphate HL Specifications
Phosphate (PO4) measurement
| Measuring range (standard operating mode) | 0.1 to 25 ppm |
|---|---|
| Measuring range (extended operating mode) | 0.1 to 50 ppm |
| Reproducibility | ± 0.1 ppm or ± 2.5%, whichever is greater |
| Measurement time | 2.5 minutes |
| Cycle time | 5 to 30 minutes |
Power supply
| Voltage | 100 – 240 VAC (±10%), 50/60 Hz or 10 – 36 VDC |
|---|
Sample conditions
| Flow rate | Approx. 10 L/h |
|---|---|
| Temperature | Up to 50 °C |
| Inlet pressure | 0.15 to 2 bar |
| Outlet pressure | Pressure free |
Dimensions
| Panel | 400 × 850 × 200 mm |
|---|
Contact us to place an order.
